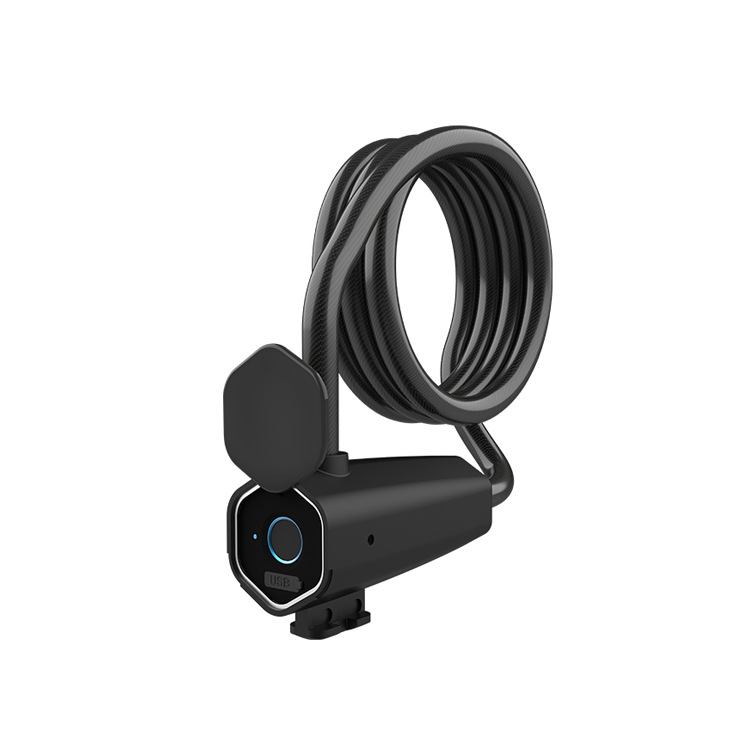

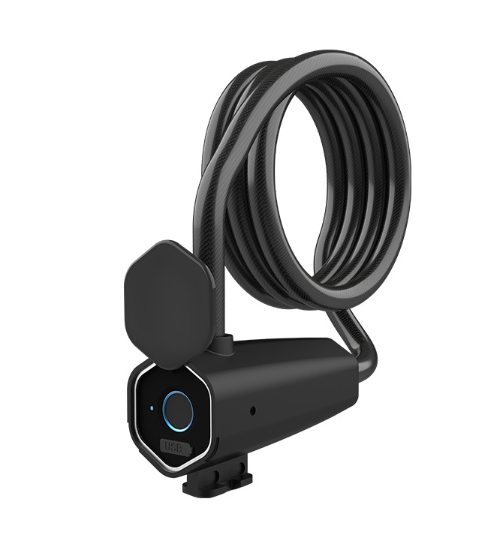

Bluetooth steel rope lock fingerprint lock

Specifications

Support 360° press fingerprint recognition in any direction;

72*64 Sensor matrix;

Resolution 508DPI;

ESD: +/-4kV air, +/-8kV contact;

FRR: <1%;

FAR: <0.002%;

Identification time (unlocking time): <300mS;

Store fingerprints: 10 groups;

Working temperature: -20℃ to +50℃;

Unlock method: fingerprint unlock/Bluetooth link APP to control unlocking;

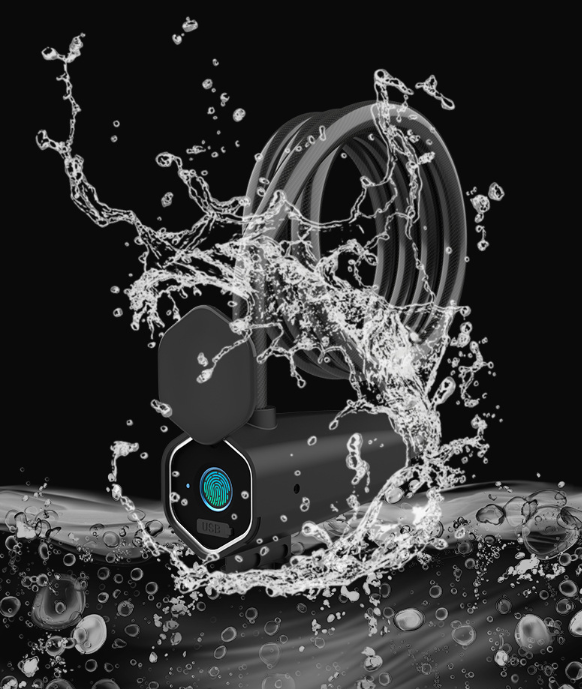

Waterproof rating: IP65.

Product power consumption:



l Unlocking working current: 180MA;

l Working current without motor: 3MA;

l Standby current: 16uA;

l The solution has the advantages of low power consumption and long standby time. A 140MAH polymer lithium battery can be standby for 2 months on a single charge;

l Emergency lock can be unlocked when the battery is short of power. After connecting the charger, you can directly unlock by pressing the fingerprint;
